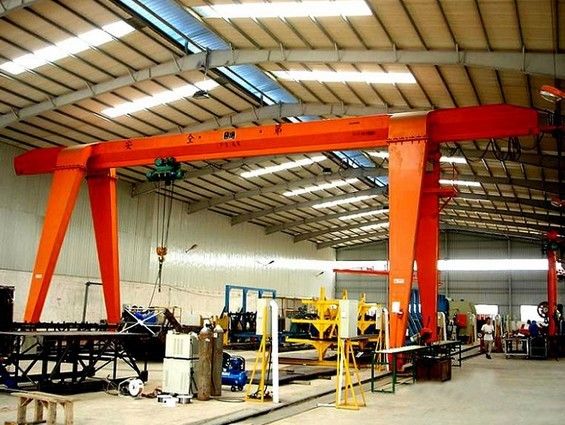

China Famous Brand Electric Single Girder Gantry Crane
MH gantry crane with electric hoist is middle- and small-size
lifting equipment which runs at rails. It is mainly composed of
gantry(girder, leg, lower cross beam,etc.), hoisting mechanism and
electric control part. With the electric hoist as hoisting
mechanism, it runs along the lower flange of the I-steel of the
girder. The girder is of box-shaped structure and truss structure.
The former boasts good techniques and easy fabrication, and the
latter is light in dead weight and strong in wind resistance. The
complete machine features light dead weight, simple structure and
easy installation and maintenance, so that it is applicable to
outdoor operational sites of medium and small lifting load for
general handling such as factories and mines, freight yards and
warehouses, It is prohibited to operated in the environment with
inflammable, explosive and corrosive gas.
Application of Single Girder Gantry Crane
Single girder gantry crane/single beam gantry crane is used in
factory, shipyard, bridge and road construction,etc to do common
lifting and unloading works. This kind of crane is composed of
bridge, support legs, crane traveling organ, trolley, electric
equipment,strong lifting winch. The frame adopts box-type welding
mechanism. Crane traveling mechanism adopts separate driver. All
mechanisms are operated in the driver cabin. Power is supplied by
cable or slide wire. there are different capacity double beams
gantry crane for your choice according to your different use.
Safety System
1. Weight overload protection device.
2. Top quality long time bearing polyurethane materials buffer.
3. Crane travelling limit switch.
4. Voltage lower protection function.
5. Emergency stop system.
6. Current overload protection system and so on!
Technical details
| Lifting Capacity | T | 3t | 5t | 10t | 16t | 20t | ||||||
| Span | m | 12~30m | ||||||||||
| Speed | Lifting | CD1 hoist | m/min | 8 | 7 | 3.5 | 3.5 | |||||
| MD1 hoist | 8/0.8 | 7/0.7 | ||||||||||
| Traveling of hoist | 20 | |||||||||||
| Traveling of crane | 20/30 | |||||||||||
| Operational Model | Cabin; remote control | |||||||||||
| Working Duty | A3 | |||||||||||
| Power Supply | Three-phase A.C. 380V, 50Hz | |||||||||||
Crane hook block
The rope sheaves are fully guarded with protective steel casting.
All sheaves rotate on ball bearing. The pulley is thicked and
dilated than domestic common pulley.
Our services
1. Warranty: the quality of our cranes is guaranteed for 1 year. In
this period, if any quality problem happens with correct operation,
we will send spare parts to our customer free of charge.
2. After warranty, we will supply spare parts at cost prices to our
customer.
|
|
