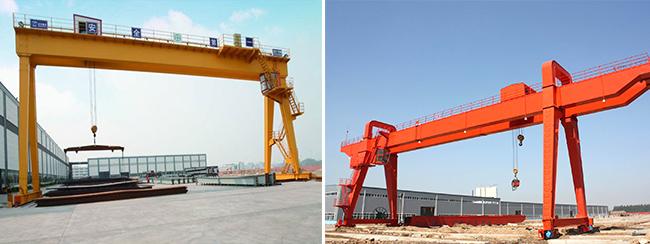

Heavy Duty Electric Double Beam Gantry Crane For Loading And Unloading
* Design and manufacture according to GB/T 14406 "General gantry
crane".
* Mainly made up of bridge, trolley, crane traveling mechanism and
electric system.
* Double girder, welded box beams, the camber line is according to
national standard.
* High safety, high steel degree
* Adopts high quality carbon steel, Q235B or Q345B.
* The main weld is by submerged arc welding automatic welding,
nondestructive flaw detection
* The end truck adopts 10.9 high strength bolt connection.
* The crane traveling mechanism adopts separated driving, and it
can use trinity drive too, safe and reliable.
* End beam equipped with buffer block, orbital cleaning device.
* Preventing hook clashing the top, set shields and barriers
* Circuit self-test protection device,Running the travel limit
* Protecting the current lacking of any phase.
* Outdoor cranes are equipped with lifting mechanism, electrical
control box and rainproof devices.
* Anti-collision, sound and light alarm devices.
* Equipped with rail clamp.
* Lifting weight limitation, height limitating, rail clamping
device
* Speeding protection, zero pressure protection, the lightning
protection
| Capacity | t | 5 | 10 | 16/3.2 | 20/5 | 32/5 | 50/10 | |||||||||
| Working class | A5 | |||||||||||||||
| Span | m | 18, 22, 26, 30, 35 | ||||||||||||||
| Lifting height | Main | m | 10 | 11 | 10 | 11 | 10 | 11 | 10 | 11 | 10 | 11 | 10 | 12 | ||
| Aux. | 10.275,11.275 | 10.446,11.446 | 10.73 | 11.73 | 10.918 | 12.918 | ||||||||||
| Speed | Lift | Main | m/min | 11.3 | 8.5 | 7.9 | 7.2 | 7.5 | 5.9 | |||||||
| Aux. | 14.6 | 15.4 | 15.4 | 10.4 | ||||||||||||
| Traveling of crab | 37.3 | 35.6 | 36.6 | 37 | 36 | |||||||||||
| Traveling of crane | 37.3 | 39.7 | 40.1 | 39.7 | 39.7 | 37.3 | 39.7 | 39.4 | 38.5 | |||||||
| Recommended rail | 43kg/m | 43kg/m or QU70 | ||||||||||||||
| Power supply | 3-Phase 380V 50HZ | |||||||||||||||
* It includes motor, speed reducer, brake, coupling, wheels,
coiling blocks.
* No asbestos brake pad and brake block insert use card outfit,
safe and reliable;
* The speed reducer use hard-toothed surface reducer, compact
structure, durable;
* Trolley travelling use seperate drive;
* Have high loading ability, long service life moving stable;
* Equipped with the derailment prevention board;
* Used for Angle round box, equipped with buffer device;
* Modular design, meet customer needs.
|
|
