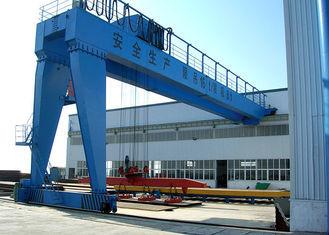

Outdoor Profesional Double Girder Semi Gantry Crane / Lifting Equipment

Description

BMH model electric hoist gantry crane is used together with CD MD model electric hoist. It is track travelling small and medium sized crane. Its proper lifting capacity is 2 to 10 tons. proper span is 10 to 20 meters, Its proper working temperature is -20℃to 40℃.
This product is a regular crane widely used at open ground and warehouses to load and unload.

Girder Structure:

1. Truss girder:

The truss girder is welded of angle steel or I type steel with the advantage of low cost, light weight, better wind resistance, but because of more welding point, large deflection, small stiffness, lower reliability, the truss type gantry crane is suitable for the fields with lower safety requirements and smaller lifting weight.

2. Box girder:

The box structure is welded of steel plate with features of high security, big stiffness, which is generally applied to the operation of large tonnage stuff, while the box girder has the shortcomings of high cost, big self weight, and poor wind resistance.

3. Box double girder:

Double girder gantry crane have the features of big lifting capacity, big span, good overall stability, various types, but the self-weight is larger than the other single girder gantry crane with the same lifting capacity.

Safety Protection:

1. Overload limiter;

2. Polyurethane buffer, long service life and impact resistance;

3. Crane travelling limit switch;

4. Loss pressure protection, fault phase protection;

5. Emergency stop system;

6. Lifting height limiter;

Specification:

Henan Feima Crane Co., Ltd. established on 1982, as a designated manufacturer of former Ministry of Machinery. The company registered capital is 106.80 million RMB and total asset is 690million RMB. It covers an area of 600,000 square meters, including 350,000 square meters construction area. There are 2360 employees in the company, including 15 senior engineers, 68 engineers, 95 assistant engineers and 230 senior technical workers who are in charge of the products development and guide the manufacturing processing. There are 1200 sets equipments for manufacturing, processing and testing that could finish more than 20kinds crafts processing, such as grinding, milling, planning.

The tenet of company: quality comes first and customer-oriented. Deliver product and service with superior quality to the customers.

The guiding principle of the company: create famous by quality, fast development by marketing, obtain benefits by management.

There are all kinds of workshops for all China traditional electric wire rope hoists such as CD1/MD1/DJCD/DJMD/TZCD/TZMD/HM, meshing wire rope hoists such as SZCD/SZMD, explosion proof wire rope hoists such as BCD/BCDS/HB/HBS, European type wire rope hoists such as FOH/FOHS, etc., and for double girders single girders, semi girder cranes, such as types LD-A LX, ZX-A, BZQ-A, LH, QD, QB,QE,MH,MDG,MG, ME, MEC2, YC, QS U, MH for many different purpose such as for industrial workshop, ship yard, port loading and unloading, hydropower station, garbage station, meshing plants, railway bridge erecting, manufacturing, metal processing, assembling, electrical apparatus assemble, forging, thermal treatment, coating, testing. It is with strong research and developing ability, advanced technology, complete testing methods and quality guarantee system goes well. The company obtained certificates of ISO9001: 2008 international quality system, GB/T24001-2004 environmental management system and GB/T28001-2001 professional healthy system. By customer’s requirements we could apply CE certificates, SA certificates, to match customer’s quality demands.

The company continuously makes scientific and technological innovation, develop new products, customized manufacturing for all customers all over the world, to meet higher- grade requirement of the market. “ First class products and First Class service” is the persistent management policy of the company. Welcome all customers to cooperate with us and we will do our utmost to make best quality products and provide best services.
