QL model Double Beam Bridge Overhed Crane with Lift Electromagnet
QL model Double Girder Magnetic Overhead Crane could equip with
hanging beam, it is applicable to use at steel mill, shipyard, port
yard, storage and waste warehouse to lift and transfer steel plate,
pipe, profile steel, steel bar, steel billets, steel coil, spool,
iron and steel scraps, etc. different sizes of long and bulk
material. The hanging beam could horizontal rotation to meet
different working demands.
This type crane is heavy duty type with working duty is A6~A7,
crane lifting capacity includes the dead weight of magnetic
lifters.
There are various types of hanging beam, fixed type, telescopic
type and rotating type to meet different working condition.
Magnet Choice:
1. Normal temperature type electric magnet:
Could design according the lifting material size, weight, package
situation etc. Working temperature is from 0~100°C.
2. High temperature type electric magnet :
This type is normally used for melting workshop, charging the
furnace, working in high temperature near the furnace and liquid
steel. Working temperature would be 700°C.

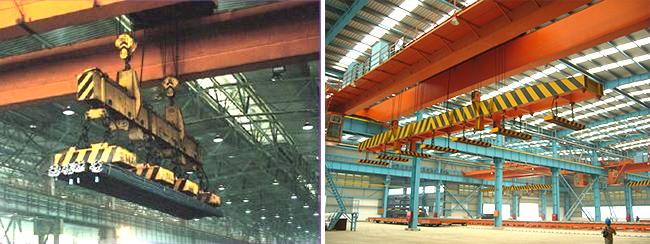

3. Magnet units with rotating hanging beam:
This type magnet normally would have 2 or more magnets units
together and fixed on a traverse beam to achieve flexible work for
long size steel products, such as still billets, thick steel
plates, steel rail etc. The magnets system can be rotating type so
that it can pick the steel items at any position and direction.
Technical Parameter:
| Capacity | t | 10+10 | 12.5+12.5 | 13.5+13.5 | |
| Span | m | 28.5 | |||
| Lifting height | m | 16 | 10 | 13 | |
| Working class | A6 | A7 | A7 | ||
| Speed | Hoisting | m/min | 11.4 | ||
| Rotation | 0.8r/min | ||||
| Traveling of crab | 38 | ||||
| Traveling of crane | 88 | ||||
| Motor | Hoisting | KW | YZR315S-10/55 | YZR315M-10/75 | YZR315M-10/75 |
| Rotation | YEZ112L-4/4.5 | ||||
| Traveling of crab | YZ160M2-6/7.5 | ||||
| Traveling of crane | YZR200L-8/2×15 | ||||
| Weight | Crab | t | 13.8 | 15.3 | 15.3 |
| Total | 72 | 75 | 87.5 | ||
| Max. wheel pressure | KN | 360 | 373 | 228 | |
| Recommended rail | QU80 | ||||
| Power supply | 3-Phase 380V 50HZ | ||||
|
|
