Manufacturer Single Girder 10 Ton Overhead Crane Price For Sale

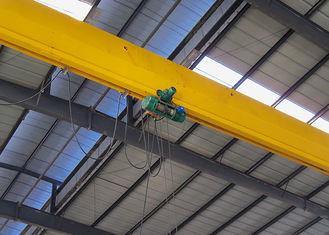

LDP Model Single Girder EOT Overhead Crane
LDP Model single girder EOT overhead crane is equipped with
electric hoist as light small lifting equipment which has traveling
orbit. It's improved and redesigned on the basis of LD Model,
compared with LD Model, its structure is more reasonable and the
whole crane rigidity is stronger.
Use and applied occasions:
It's extensively applied in plants, warehouses, material stocks,
and some other different places to lift goods. But it's prohibited
to use the equipment in the combustible, explosive or corrosives
environment.
| Lifting capacity (T) | 1, 2, 3, 5, 10T | 16, 20T | |||||||||||
| Span(M) | 7.5-22.5M | ||||||||||||
| Crane traveling mechanism | Traveling speed(m/min) | 20 | 30 | 45 | 60 | 75 | 20 | ||||||
| Reducer ratio | 58.78 | 39.38 | 26.36 | 19.37 | 15.88 | 58.78 | |||||||
| Motor | Model | ZDY21-4 | ZDY21-4 | ZDY122-4 | |||||||||
| Power(kw) | 2× 0.8 | 2× 1.5 | 1.5× 2 | ||||||||||
| Rotation (m/min) | 1380 | 1380 | |||||||||||
| Lifting mechanism (electric hoist)& electric hoist traveling mechanism | Electric hoist model | CD1/MD1 | MD1/HC | ||||||||||
| Lifting speed (m/min) | 8, 8/0.8 7, 7/0.7 | 3.5 3.5/0.35 | |||||||||||
| Lifting height (m) | 6, 9, 12, 18, 24, 30 | 12, 18, 24, 30 | |||||||||||
| Traveling speed (m/min) | 20(30) | 20(30) | |||||||||||
| Motor | Taper Squirrel-cage type | Taper Squirrel-cage type | |||||||||||
| Work duty | A3-A5 | ||||||||||||
| Power supply | 380V 50HZ three phase | ||||||||||||
| Wheel diameter | 270mm | 370mm | |||||||||||
| Width of trail | 37-70mm | 37-70mm | |||||||||||
1. Main beam- The main traveling structure of the crane which spans the width
of the bay and travels in a direction parallel to the runway. The
bridge consists of two end trucks and one or two bridge girders
depending on the equipment type. The bridge also supports the
trolley and hoisting mechanism for up and down lifting of load.
2. End trucks- Located on either side of the bridge, the end trucks house the
wheels on which the entire crane travels. It is an assembly
consisting of structural members, wheels, bearings, axles, etc.,
which supports the bridge girder(s) or the trolley cross member(s).
3. Bridge Girder(s)- The principal horizontal beam of the crane bridge which supports
the trolley and is supported by the end trucks.
4. Runway - The rails, beams, brackets and framework on which the crane
operates.
5. Runway Rail- The rail supported by the runway beams on which the crane
travels.
6. Hoist- The hoist mechanism is a unit consisting of a motor drive,
coupling, brakes, gearing, drum, ropes, and load block designed to
raise, hold and lower the maximum rated load. Hoist mechanism is
mounted to the trolley.
7. Trolley -The unit carrying the hoisting mechanism which travels on the
bridge rails in a direction at right angles to the crane runway.
Trolley frame is the basic structure of the trolley on which are
mounted the hoisting and traversing mechanisms.
8. Bumper (Buffer)- An energy absorbing device for reducing impact when a moving
crane or trolley reaches the end of its permitted travel, or when
two moving cranes or trolleys come into contact. This device may be
attached to the bridge, trolley or runway stop.
Single Girder Overhead Crane Drawing
|
|
