5 ton Motor Driven single girder electric hoist bridge overhead crane
Product Description
5t to 20t Single Girder Overhead Crane (LDA)
Specifications:
1) Load: 5-20t
2) Span: 10.5-35.5m
3) Lifting height: According to your requirements.
4) Working duty: A3.

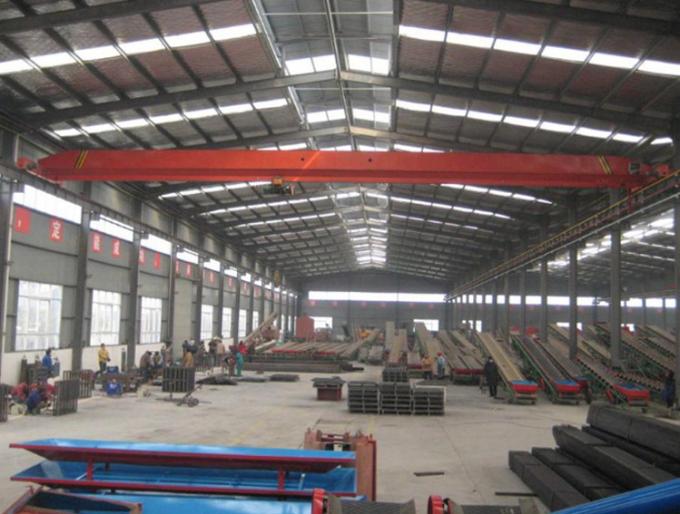

LDA Model Single Girder Overhead Cranes are widely used in various
places such as factory, warehouse, and stuff yards to lift goods,
forbidden to be used in flammable, explosive and corrosive
environment. The work class is A3. Hoisting Capacity: 5-20T, span:
10.5-31.5m. These kinds of products are operated by ways of ground
and cabin control. There are open and closed styles for driver's
cabin; It could be divided into left and right installation
according to practical situations. Entrance direction adopts
profile and top entering to satisfy different needs of customer's
choice. The crane can be used for both indoor and outdoor
operations and water-proof cloth is needed in out door operation.
| Lifting capacity (T) | 1, 2, 3, 5, 10T | 16, 20T | |||||||||||
| Span(M) | 7.5-22.5M | ||||||||||||
| Crane traveling mechanism | Traveling speed(m/min) | 20 | 30 | 45 | 60 | 75 | 20 | ||||||
| Reducer ratio | 58.78 | 39.38 | 26.36 | 19.37 | 15.88 | 58.78 | |||||||
| Motor | Model | ZDY21-4 | ZDY21-4 | ZDY122-4 | |||||||||
| Power(kw) | 2× 0.8 | 2× 1.5 | 1.5× 2 | ||||||||||
| Rotation (m/min) | 1380 | 1380 | |||||||||||
| Lifting mechanism (electric hoist)& electric hoist traveling mechanism | Electric hoist model | CD1/MD1 | MD1/HC | ||||||||||
| Lifting speed (m/min) | 8, 8/0.8 7, 7/0.7 | 3.5 3.5/0.35 | |||||||||||
| Lifting height (m) | 6, 9, 12, 18, 24, 30 | 12, 18, 24, 30 | |||||||||||
| Traveling speed (m/min) | 20(30) | 20(30) | |||||||||||
| Motor | Taper Squirrel-cage type | Taper Squirrel-cage type | |||||||||||
| Work duty | A3-A5 | ||||||||||||
| Power supply | 380V 50HZ three phase | ||||||||||||
| Wheel diameter | 270mm | 370mm | |||||||||||
| Width of trail | 37-70mm | 37-70mm | |||||||||||
Single Girder Overhead Crane Drawing
|
|
