LDA type 5 ton single girder traveling overhead crane price and overhead travelling crane price
Bridge crane is one kind of heavy duty crane ,it is widely used in plants, warehouses, materials stocks to
lift goods or materials. This crane mainly consists of strong bridge beams,crane travelling
mechanism, electric winch trolley and electric system,and could be classified into several working
duties,e.g.A5,A6,A7,according to the working frequency and pure working time.
| Product Name | Product picture | Product introduction |

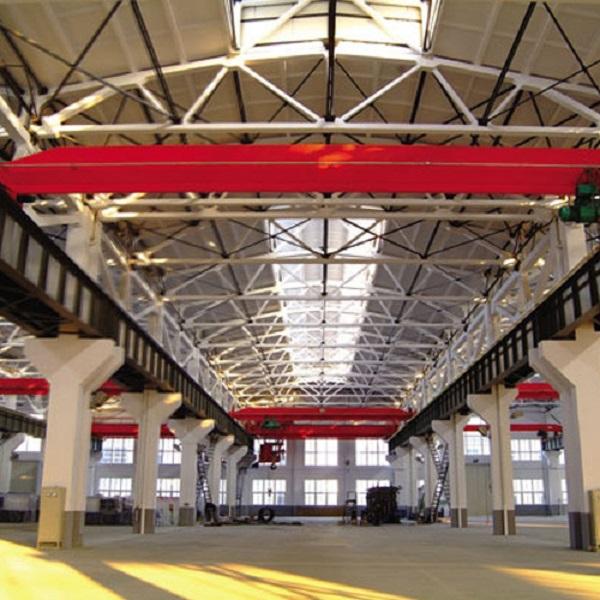

| Single girder bridge crane |  | Single girder bridge crane consists of four components: the single girder, end carriage, electric hoist and electric control equipment. The Girder adopts the welding structure of U-shaped groove and structure with the I-steel. This transmission system has strong overloading power, suited to frequent starter with simple structure, convenient installation, use and maintenance, low cost, suitable for general lifting of the goods. |

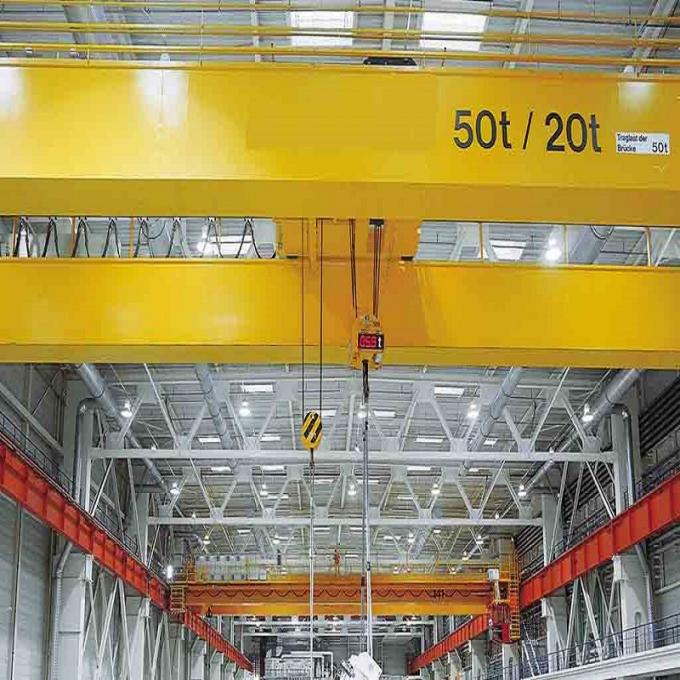

| Double girder bridge crane |  | Double-girder bridge crane with hook is the widely used hoisting machinery currently.It is mainly comprised of box-shape bridge,crane crab,trolley travelling mechanism and electric control system.The load handing device is the hook.On the girder for crane crab to transversely move.The girder is weld with the box-shaped end girder.At the middle of the end girder are joints which are fastened with bolts for fragmented transportation of bridges.The platform is used to place trolley travelling mechanism,electric equipment and used for repair. |
| Crane travelling mechanism | Traveling speed(m/min) | 20 | 30 | |
| Speed ratio | 58.95 | 39.42 | ||
| Motor | Type | Cone squirrel-cage | ||
| Power(kw) | 0.8*2,1.5*2 | |||
| Rotational speed(r/min) | 1380 | |||
Lifting mechanism(electric hoist)&electric hoist travelling mechanism | Model of electric hoist | YHⅡmodel | ||
| Lifting speed(m/min) | 8,7 | |||
| Lifting height(m) | 9,12,15,18,20 | |||
| Traveling speed(m/min) | 20 | |||
| motor | Cone squirrel-cage model | |||
| Working system | Intermediate Jc=25% | |||
| Electric current | 380V 50HZ Three-phase | |||
| Wheel diameter | 270,400 | |||
| Width trail | 37-70 | |||
Advantage of crane main beam/girder
The U shape slot with high precise is made by cold bend forming technology, which avoid polish, cutting and welding etc. such complicated production process, it can reduce the deformation of single beam/girder overhead crane during loading and transportation, thus, it can ensure the precise of main beam/girder, reduce the welding stress and welding fatigue during travelling. Meanwhile, it greatly increases the strength of whole crane, improve working efficiency and appearance quality.
Packaging & Shipping
1. Electrical parts and hoist are packed by strong plywood box, to prevent the rain soaked.
2. Main beam, end beam, platform railing and others are packed in plastic woven cloth, to prevent corrosion in seawater.
