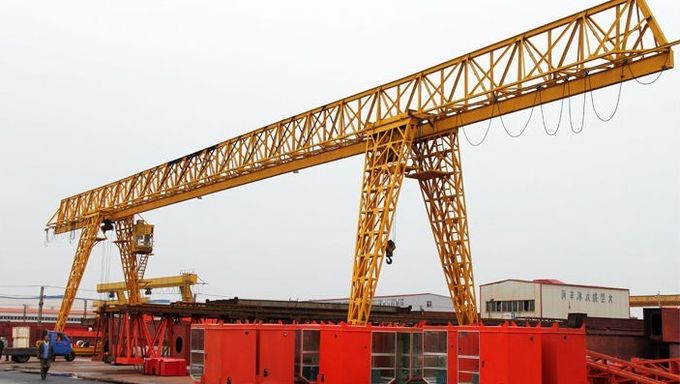

20 Ton Electric Mobile Single Beam Gantry Crane With Cabin / Remote Control
Electric hoist single beam gantry crane 20 ton : It is a type of gantry crane, and configured electrical wire rope hoist used for lifting goods,it widely used for places, such as plants,warehouses, factories ,production lines and other places.
Product Description
MH type gantry crane is matched with CD1, MD1 electric hoist.
This crane is a kind of track travelling mid-light type crane.
The capacity of crane from 3T ~ 20T.
The span of crane from 12m ~ 30m.
The working temperature within-20~+40 centigrade.
Safety Features of single beam gantry crane:
1) Overloading protection
2) Top quality long time bearing polyurethane materials buffer
3) Crane traveling and cross limit switch
4) Voltage lower protection function, reduce energy consumption
5) Main lifting motor with thermal protection
6) Hooks with latch
7) Rubber buffers
8) Protective earthing
9) Sub-assembly characteristic are tested before assembly
10) Emergency stop system, current over-load protection system,
Excellent exchangeability for parts and components
Details
| Lifting capacity (t) | 3 | 5 | 10 | 16 | 20 | ||
| Span (m) | 12~24 | 12~30 | |||||
| Lifting height(m) | 6/9 | ||||||
Speed (m/min) | Hoisting | CD1 | 8 | 8 | 7 | 3.5 | |
| MD1 | 8,/0.8 | 8,/0.8 | 7/0.7 | 3.5/0.35 | |||
| Cross travel | 20 | ||||||
| Long travel | 20,30 | ||||||
| Duty classification | A3 | ||||||
| Electric current | Three-phase AC. 127~ 480V 50/60Hz | ||||||
|
|
