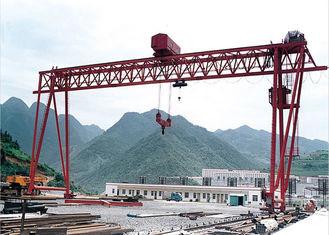

Strong Steel Industrial Gantry Crane Trussed Electric Hoist MH Model For Workshop

Top quality factory steel project gantry crane is used both in multi-wind area and workshop for inside & outside. It is composed of metal structure, cart operating mechanism, electric device and trolley (electric hoist). The surface of facing wind is very small, because of its steel-pip leg & is characterized in the light dead weight and strong lift capacity. It has ground-controlling and remote-controlling. The lifting capacity is 2~20t, span is 10~30m, ambient temperature is no more than 40°C, and wind-pressure is less than 125Pa.

The profiles of the main girder are optimally produced using an integrated technology which is weldless, so that maximum performance with a minimum of deadweight can be achieved.

Standard Features:

Design: ‘WEIHUA’ Brand MH model trussed electric hoist single beam gantry crane is designed & manufactured accordance with ISO 9001:2000 ISO 14001:2004 and OHSAS 18001 considering factor of safety in respect to appropriate class of duty.

Motors:
The motors are used specially crane duty suitable for frequent starting , reversing & braking in accordance with ISO 9001:2000 ISO 14001:2004.Motors are totally enclosed in dust proof construction foot / flange mounted TESC / TEFC , Sq. cage motors with integrated safety brakes, insulation class F, IP54 protection for hoisting, CT & LT motions.

Brakes:
Independent Hydraulic Brake make the crane safer and easier to control

Gear Box:
The entire gear boxes are made of accurate hob cut helical / spur gears & pinions having hardness 250 to 350 BHN made from carbon alloy steel. All gears & pinions running on antifriction type ball / roller bearings in totally are enclosed oil bath giving constant splash lubrication. The helical / Spur gear designed for adequate strength and optimum wear resistance for smooth operation & long life.

Wheels:
The wheels of crane crab, main beam and end carriage are produced in our special Vacuum casting workshop (No sand inclusion technique) which makes our wheels more elastic and outer surface hard-wearing and durable.

Electrical Panel:
Modular design, ease to install and maintain, reliable operation, fuse less circuitry, ducted wiring and compact terminals. Motor overload protection to prevent overloading.

Limit Switch:
Safety limit switches for stoppers will be provided to prevent over traveling in all motions.

Painting:
Two coats of primer before assembly & two coats of synthetic enamel after testing.

Optional Features:
Variable speed through VVF Drive
Soft starter
Slipring motors
Wireless Radio Remote control
Shrouded DSL system for power feeding
Flameproof
Cabin Operated

Crane hook block
The rope sheaves are fully guarded with protective steel casting. All sheaves rotate on ball bearing. The pulley is thicked and dilated than domestic common pulley.
