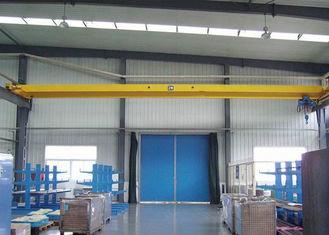

10 Ton Single Girder Overhead Crane / Electric Steel Workshop Overhead Crane
China Indoor trolley Electric Overhead Crane Price
Single girder overhead crane is one kind of light duty and small
hoisting machinery.
It will improve the effectiveness of your production plant in a
very simple way: by maximizing your space.
You can utilize every square inch of your floor space.
1. Single girderoverheadcrane is designed on the basis of LD type
crane, characterized by the features
of reasonable structure and strong rigidity.
2. CD1 and MD1 hoists are used together with this type of crane, a
light duty one.
3. It must be handled in a medium without such hazards as
combustion, explosion, and erosion
4. It is prohibited to be used in the combustible, explosive and
corrosive environment!
5. Lifting capacity ranges from 1ton to 20 ton, with its span from
7.5 to31.5m, work duty from A3 to A5, work temperature from -25
degree to 40 degree.
Advantage:
1). First class quality with competitive price
2). Compact design, optimal use of the size of work areas
3). Reasonable structure, favorable performance
4). Control the load easily and position the load exactly
5). Smooth starting and stopping
6). Superior safety and reliability
7). Low noise, commodious cabin and good view
8). Minimum& Easy maintenance, excellent exchangeability for parts
and components
9). Saves electricity specifications
10). “One-Stop Shop” for your crane and hoist needs
Safety features:
1. Overload protection: If the material is over the capacity, the
crane will give a sharp warning for protection itself.
2. Emergency brake: If the operation staff encounter some emergency
situation, we could start the emergency brake system to protection
the related treasure.
3. Control Method: Room control or remote control to avoid any
injure to the operation staff
4. Main lifting motor: with thermal protection and currency
protection.
5. Hooks with latch
6. Rubber buffers
7. Protective earthing
8. Crane switch and travel end switch
9. Sub-assemblies characteristic are tested before assemly.
10. All cranes must be preassmebled and tested before leaving
factory and offer the certification of test.
Technical parameter:
| Lifting capacity (T) | 1,2,3,5,10T | 16,20T | |||||||||||
| Span(M) | 5.5-31.5M | ||||||||||||
| Crane travelling mechanism | Travelling speed(m/min) | 20 | 30 | 45 | 60 | 75 | 20 | 30 | 45 | 60 | 75 | ||
| Reducer ratio | 58.78 | 39.38 | 26.36 | 19.37 | 15.88 | 58.78 | 39.38 | 26.36 | 19.37 | 15.88 | |||
| Motor | Model | ZDY21-4 | ZDY21-4 | ZDY122-4 | ZDY131S-4 | ZDY112L1-4 | |||||||
| Power(kw) | 2×0.8 | 2×1.5 | 1.5×2 | 2.2×2 | 2.2×2 | ||||||||
| Rotation (m/min) | 1380 | 1380 | |||||||||||
Lifting mechanism (electric hoist)&electric hoist travelling mechanism | Electric hoist model | CD1/MD1 | MD1/HC | ||||||||||
| Lifting speed (m/min) | 8,8/0.8 7,7/0.7 | 3.5 3.5/0.35 | |||||||||||
| Lifting height (m) | 6 ,9 ,12, 18, 24, 30 | 12,18,24,30 | |||||||||||
| Travelling speed (m/min) | 20(30) | 20(30) | |||||||||||
| Motor | Taper Squirrel-cage type | Taper Squirrel-cage type | |||||||||||
| Work duty | A3-A5 | ||||||||||||
| Power supply | 380V 50HZ three phase and as you demand | ||||||||||||
| Wheel diameter | 270mm | 370mm | |||||||||||
| Width of trail | 37-70mm | 37-70mm | |||||||||||
|
|
