    Warehouse Single Beam Overhead Crane For Materials Lifting Pendant Remote Control

    Ask Lasest Price
    Brand Name : Major
    Model Number : LDA
    Certification : CE/ISO/GOST/SGS/BV/TUV
    Price : Negotiable
    Supply Ability : 20000 Sets Per Year
    Delivery Time : 15days - 100days
    • Product Details
    • Company Profile

    Warehouse Single Beam Overhead Crane For Materials Lifting Pendant Remote Control

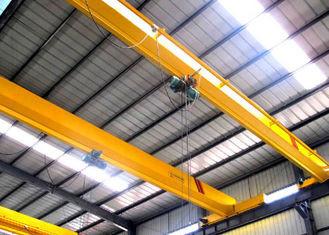

    Warehouse Single Girder Overhead Crane For Lifting Goods Or Materials

    Description:

    Single Girder Overhead Maintenance Crane is widely used in plants,warehouses,materials stocks to lift goods or materials.It is prohibited to use this equipment in the combustible,explosive and corrosive environment.

    Crane girder:

    The crane girder is of welded girder construction. This result in lower dead weight with a high degree of vertical and horizontal rigidity and small wheel loads being transmitted to the crane runway!
    Safety feature:
    Weight overload protection device, Top quality long time bearing polyurethane materials buffer, Crane traveling limit switch, Voltage lower protection function, Emergency stop system, current overload protection system and so on!

    Technical parameter:

    Lifting capacity (T)1,2,3,5,10T16,20T
    Span(M)5.5-31.5M
    Crane travelling mechanismTravelling speed(m/min)20304560752030456075
    Reducer ratio58.7839.3826.3619.3715.8858.7839.3826.3619.3715.88
    MotorModelZDY21-4ZDY21-4ZDY122-4ZDY131S-4ZDY112L1-4
    Power(kw)2×0.82×1.51.5×22.2×22.2×2
    Rotation (m/min)13801380

    Lifting mechanism
    (electric hoist)&electric hoist travelling mechanism

    Electric hoist modelCD1/MD1MD1/HC
    Lifting speed (m/min)8,8/0.8 7,7/0.73.5 3.5/0.35
    Lifting height (m)6 ,9 ,12, 18, 24, 3012,18,24,30
    Travelling speed (m/min)20(30)20(30)
    MotorTaper Squirrel-cage typeTaper Squirrel-cage type
    Work dutyA3-A5
    Power supply380V 50HZ three phase and as you demand
    Wheel diameter270mm370mm
    Width of trail37-70mm37-70mm


    Packaging & shipment
