Henan Feima Crane Co., Ltd. Quality Comes First and Customer-Oriented
8 Years
| Ask Lasest Price | |
| Brand Name : | Major |
| Model Number : | LDA |
| Certification : | CE/ISO/GOST/SGS/BV/TUV |
| Price : | Negotiable |
| Supply Ability : | 20000 Sets Per Year |
| Delivery Time : | 15days - 100days |

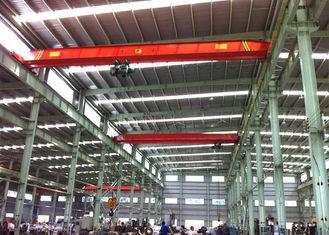

The single beam crane is small lifting capacity and travel along high I-Steel track.
Features:
Tight dimension, low building headroom, light dead weight and light
wheel load.
It is a light duty track traveling crane with trajectory which
applies to and used at machinery, assembling sites and warehouses.
This product adopts ground control and works at a temperature of
-25--40 centigrade. It is prohibited to use the equipment at
combustible, explosive or corrosive environment.
The crane applies to works and storehouses where it is ≥100 mm
height between the rail surface and the rafter of roof truss.
The trolley forms a set with electric hoist, The mechanism of crane
is nimble, with safe and reliable motion. It is capable of
designing and making non-standard hoisting equipment.
Single Girder Overhead Crane Drawing
| Lifting capacity (T) | 1, 2, 3, 5, 10T | 16, 20T | |||||||||||
| Span(M) | 7.5-22.5M | ||||||||||||
| Crane traveling mechanism | Traveling speed(m/min) | 20 | 30 | 45 | 60 | 75 | 20 | ||||||
| Reducer ratio | 58.78 | 39.38 | 26.36 | 19.37 | 15.88 | 58.78 | |||||||
| Motor | Model | ZDY21-4 | ZDY21-4 | ZDY122-4 | |||||||||
| Power(kw) | 2× 0.8 | 2× 1.5 | 1.5× 2 | ||||||||||
| Rotation (m/min) | 1380 | 1380 | |||||||||||
| Lifting mechanism (electric hoist)& electric hoist traveling mechanism | Electric hoist model | CD1/MD1 | MD1/HC | ||||||||||
| Lifting speed (m/min) | 8, 8/0.8 7, 7/0.7 | 3.5 3.5/0.35 | |||||||||||
| Lifting height (m) | 6, 9, 12, 18, 24, 30 | 12, 18, 24, 30 | |||||||||||
| Traveling speed (m/min) | 20(30) | 20(30) | |||||||||||
| Motor | Taper Squirrel-cage type | Taper Squirrel-cage type | |||||||||||
| Work duty | A3-A5 | ||||||||||||
| Power supply | 380V 50HZ three phase | ||||||||||||
| Wheel diameter | 270mm | 370mm | |||||||||||
| Width of trail | 37-70mm | 37-70mm | |||||||||||
|
|
